Ultrasonography.  2024 Jul;43(4):284-293. 10.14366/usg.24059.

Ultrasonographic features of the skin and subcutis: correlations with the severity of breast cancer–related lymphedema

• Park JY
• Jeon JY
• Cha S

• KMID: 2556695
• DOI: http://doi.org/10.14366/usg.24059

Abstract

Purpose
Assessing the severity of breast cancer-related lymphedema (BCRL) requires various clinical tools, yet no standardized methodology is available. Ultrasonography shows promise for diagnosing lymphedema and evaluating its severity. This study explored the clinical utility of ultrasonography in patients with BCRL.
Methods
In this retrospective cross-sectional study, patients with unilateral BCRL were examined. The analyzed data included demographics, lymphedema location, International Society of Lymphology (ISL) stage, surgical history, treatment regimens, and arm circumference. Skin, subcutis, and muscle thicknesses were assessed ultrasonographically at predetermined sites, and the percentage of excess thickness was calculated. Multivariate logistic regression analysis was employed to identify associations between ultrasonographic measurements and advanced lymphedema (ISL 2 or 3). The Lymphedema Quality of Life arm questionnaire was used to evaluate patient-reported outcomes regarding lymphedema and their correlations with ultrasonographic findings.
Results
Among 118 patients, 71 were classified as ISL 0-1 and 47 as ISL 2-3. Patients with advanced lymphedema were older, had higher nodal stages, underwent more axillary lymph node dissections, and had higher rates of dominant-arm lymphedema. Multivariate logistic regression revealed significant associations of greater skin thickness (adjusted odds ratio [OR], 4.634; 95% confidence interval [CI], 1.233 to 17.419), subcutis thickness (adjusted OR, 7.741; 95% CI, 1.649 to 36.347), and subcutis echogenicity (adjusted OR, 4.860; 95% CI, 1.517 to 15.566) with advanced lymphedema. Furthermore, greater skin thickness (P=0.016) and subcutis echogenicity (P=0.023) were correlated with appearance-related discomfort.
Conclusion
Ultrasonographic measurements were significantly associated with advanced lymphedema in BCRL. Ultrasonography represents a valuable diagnostic and severity assessment tool for lymphedema.

Keyword

Lymphedema; Ultrasonography; Breast neoplasm; Lymphatic system

Figure

•

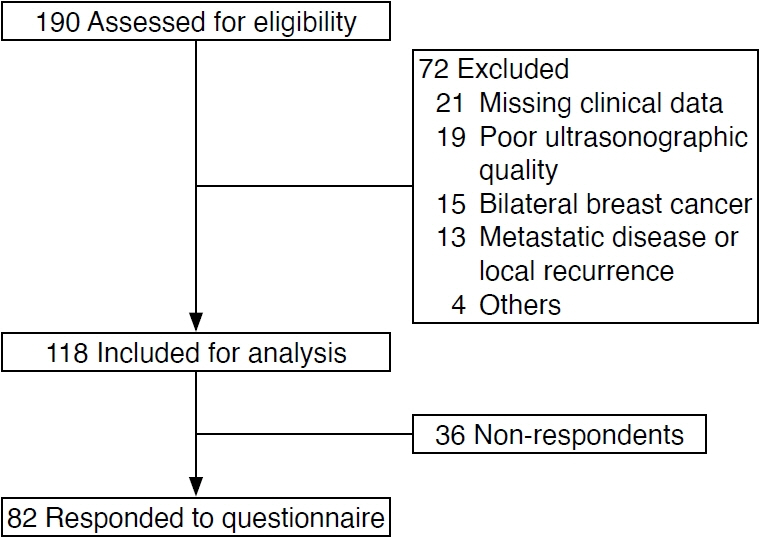

  Fig. 1. Study flowchart.

•

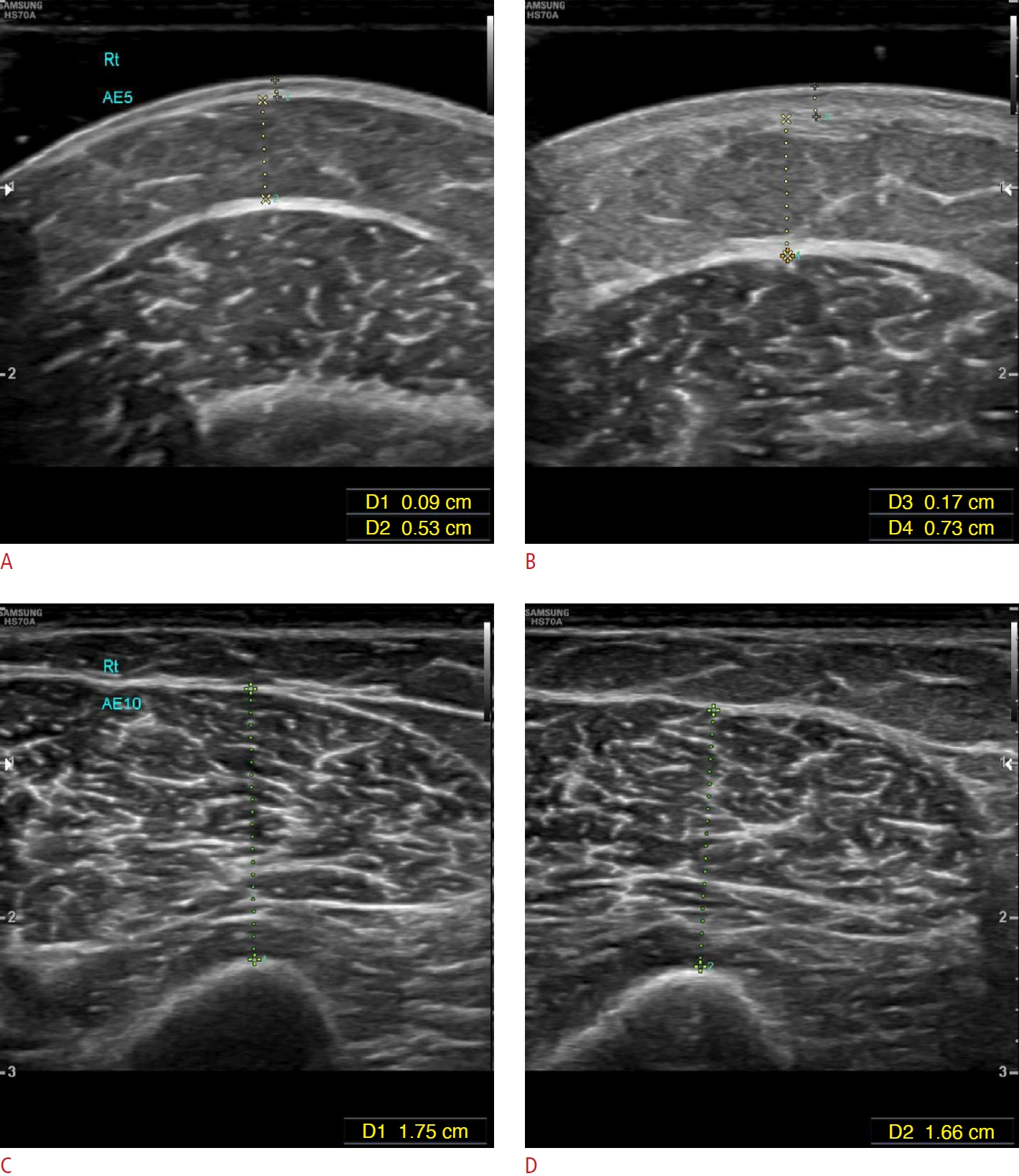

  Fig. 2. Case of a 64-year-old woman with left lymphedema.A, B. Images display measurements of skin and subcutaneous thickness, obtained without pressure, resulting in a convex appearance of the skin. C, D. Images present measurements of muscle thickness, taken with minimal pressure. Compared to the opposite side, the affected side exhibited increased skin and subcutaneous tissue thickness, with no significant difference in muscle thickness observed.

•

Reference

References

1. Ren W, Chen M, Qiao Y, Zhao F. Global guidelines for breast cancer screening: a systematic review. Breast. 2022; 64:85–99.

2. Ghanta S, Cuzzone DA, Torrisi JS, Albano NJ, Joseph WJ, Savetsky IL, et al. Regulation of inflammation and fibrosis by macrophages in lymphedema. Am J Physiol Heart Circ Physiol. 2015; 308:H1065–H1077.

3. Zampell JC, Yan A, Elhadad S, Avraham T, Weitman E, Mehrara BJ. CD4(+) cells regulate fibrosis and lymphangiogenesis in response to lymphatic fluid stasis. PLoS One. 2012; 7:e49940.

4. Furmaniak AC, Menig M, Markes MH. Exercise for women receiving adjuvant therapy for breast cancer. Cochrane Database Syst Rev. 2016; 9:CD005001.

5. Nelson NL. Breast cancer-related lymphedema and resistance exercise: a systematic review. J Strength Cond Res. 2016; 30:2656–2665.

6. Jeon Y, Beom J, Ahn S, Bok SK. Ultrasonographic evaluation of breast cancer-related lymphedema. J Vis Exp. 2017; (119):54996.

7. Suehiro K, Morikage N, Murakami M, Yamashita O, Samura M, Hamano K. Significance of ultrasound examination of skin and subcutaneous tissue in secondary lower extremity lymphedema. Ann Vasc Dis. 2013; 6:180–188.

8. Giray E, Yagci I. Interrater and intrarater reliability of subcutaneous echogenicity grade and subcutaneous echo-free space grade in breast cancer-related lymphedema. Lymphat Res Biol. 2019; 17:518–524.

9. Perez CS, Mestriner C, Ribeiro LT, Grillo FW, Lemos TW, Carneiro AA, et al. Relationship between lymphedema after breast cancer treatment and biophysical characteristics of the affected tissue. PLoS One. 2022; 17:e0264160.

10. Executive Committee of the International Society of Lymphology. The diagnosis and treatment of peripheral lymphedema: 2020 Consensus Document of the International Society of Lymphology. Lymphology. 2020; 53:3–19.

11. Sharkey AR, King SW, Kuo RY, Bickerton SB, Ramsden AJ, Furniss D. Measuring limb volume: accuracy and reliability of tape measurement versus perometer measurement. Lymphat Res Biol. 2018; 16:182–186.

12. Jung C, Kim J, Seo YJ, Song KJ, Gelvosa MN, Kwon JG, et al. Who will continuously depend on compression to control persistent or progressive breast cancer-related lymphedema despite 2 years of conservative care? J Clin Med. 2020; 9:3640.

13. Suehiro K, Morikage N, Murakami M, Yamashita O, Ueda K, Samura M, et al. Subcutaneous tissue ultrasonography in legs with dependent edema and secondary lymphedema. Ann Vasc Dis. 2014; 7:21–27.

14. Uhm KE, Yeo SM, Yoo JS, Hwang JH. Reliability and validity of the Korean version of the lymphedema quality of life questionnaire in breast cancer-related lymphedema patients. Lymphat Res Biol. 2023; 21:187–193.

15. de Rezende LF, Piloni JPM, Kempa VL, Silva JF, Vilas Boas VF, Carvalho RL, et al. Ultrasonography as an instrument to evaluate lymphedema secondary to breast cancer: systematic review. J Vasc Bras. 2023; 22:e20220144.

16. Jung M, Jeon JY, Yun GJ, Yang S, Kwon S, Seo YJ. Reference values of bioelectrical impedance analysis for detecting breast cancer-related lymphedema. Medicine (Baltimore). 2018; 97:e12945.

17. Yasunaga Y, Yanagisawa D, Ohata E, Matsuo K, Yuzuriha S. Bioelectrical impedance analysis of water reduction in lowerlimb lymphedema by lymphaticovenular anastomosis. J Reconstr Microsurg. 2019; 35:306–314.

18. Son JH, Min JH, Kim IH, Lee SY, Lee CH. The clinical usefulness of ultrasonographic measurement technique in patients with lower extremity lymphedema. Lymphat Res Biol. 2023; 21:20–27.

19. Suehiro K, Morikage N, Yamashita O, Harada T, Samura M, Takeuchi Y, et al. Skin and subcutaneous tissue ultrasonography features in breast cancer-related lymphedema. Ann Vasc Dis. 2016; 9:312–316.

20. Suami H, Scaglioni MF. Anatomy of the lymphatic system and the lymphosome concept with reference to lymphedema. Semin Plast Surg. 2018; 32:5–11.

21. Duyur Cakit B, Pervane Vural S, Ayhan FF. Complex decongestive therapy in breast cancer-related lymphedema: does obesity affect the outcome negatively? Lymphat Res Biol. 2019; 17:45–50.

22. Aslan H, Analan PD, Kaya E. Is there a correlation between the biceps brachii muscle stiffness measured by elastography and severity of lymphedema in patients with breast cancer-related lymphedema? Arch Clin Exp Med. 2018; 3:143–147.

23. Jeong HJ, Sim YJ, Hwang KH, Kim GC. Causes of shoulder pain in women with breast cancer-related lymphedema: a pilot study. Yonsei Med J. 2011; 52:661–667.

24. Ahmed RL, Prizment A, Lazovich D, Schmitz KH, Folsom AR. Lymphedema and quality of life in breast cancer survivors: the Iowa Women's Health Study. J Clin Oncol. 2008; 26:5689–5696.

25. Suehiro K, Morikage N, Harada T, Samura M, Nagase T, Mizoguchi T, et al. Regular compression therapy may not be necessary for lymphedema in arms without a subcutaneous echo-free space. Ann Vasc Surg. 2020; 62:258–262.

26. Marchica P, D'Arpa S, Magno S, Rossi C, Forcina L, Capizzi V, et al. Integrated treatment of breast cancer-related lymphedema: a descriptive review of the state of the art. Anticancer Res. 2021; 41:3233–3246.

27. Cheema BS, Kilbreath SL, Fahey PP, Delaney GP, Atlantis E. Safety and efficacy of progressive resistance training in breast cancer: a systematic review and meta-analysis. Breast Cancer Res Treat. 2014; 148:249–268.

28. Baumann FT, Reike A, Reimer V, Schumann M, Hallek M, Taaffe DR, et al. Effects of physical exercise on breast cancer-related secondary lymphedema: a systematic review. Breast Cancer Res Treat. 2018; 170:1–13.

29. Kim SA, Gelvosa MN, Cheon H, Jeon JY. The effects of postoperative treadmill exercise on rats with secondary lymphedema. PLoS One. 2023; 18:e0285384.

30. Derraik JG, Rademaker M, Cutfield WS, Pinto TE, Tregurtha S, Faherty A, et al. Effects of age, gender, BMI, and anatomical site on skin thickness in children and adults with diabetes. PLoS One. 2014; 9:e86637.

31. Sim KH, Hwang MS, Kim SY, Lee HM, Chang JY, Lee MK. The appropriateness of the length of insulin needles based on determination of skin and subcutaneous fat thickness in the abdomen and upper arm in patients with type 2 diabetes. Diabetes Metab J. 2014; 38:120–133.

32. Han NM, Cho YJ, Hwang JS, Kim HD, Cho GY. Usefulness of ultrasound examination in evaluation of breast cancer-related lymphedema. J Korean Acad Rehab Med. 2011; 35:101–109.
