Time-Resolved 3D Contrast-Enhanced MRA on 3.0T: a Non-Invasive Follow-Up Technique after Stent-Assisted Coil Embolization of the Intracranial Aneurysm

• Choi JW
• Roh HG
• Moon WJ
• Kim NR
• Moon SG
• Kang CH
• Chun YI
• Kang HS

• KMID: 1101919
• DOI: http://doi.org/10.3348/kjr.2011.12.6.662

Abstract

OBJECTIVE
To evaluate the usefulness of time-resolved contrast enhanced magnetic resonance angiography (4D MRA) after stent-assisted coil embolization by comparing it with time of flight (TOF)-MRA.
MATERIALS AND METHODS
TOF-MRA and 4D MRA were obtained by 3T MRI in 26 patients treated with stent-assisted coil embolization (Enterprise:Neuroform = 7:19). The qualities of the MRA were rated on a graded scale of 0 to 4. We classified completeness of endovascular treatment into three categories. The degree of quality of visualization of the stented artery was compared between TOF and 4D MRA by the Wilcoxon signed rank test. We used the Mann-Whitney U test for comparing the quality of the visualization of the stented artery according to the stent type in each MRA method.
RESULTS
The quality in terms of the visualization of the stented arteries in 4D MRA was significantly superior to that in 3D TOF-MRA, regardless of type of the stent (p < 0.001). The quality of the arteries which were stented with Neuroform was superior to that of the arteries stented with Enterprise in 3D TOF (p < 0.001) and 4D MRA (p = 0.008), respectively.
CONCLUSION
4D MRA provides a higher quality view of the stented parent arteries when compared with TOF.

Keyword

Aneurysm; Coil embolization; Stent; Time of flight MRA; Time-resolved MRA

MeSH Terms

Adult
Aged
Cerebral Arteries/pathology
*Contrast Media
*Embolization, Therapeutic
Female
Humans
*Imaging, Three-Dimensional
Intracranial Aneurysm/*diagnosis/therapy
*Magnetic Resonance Angiography/methods
Male
Middle Aged
Sensitivity and Specificity
*Stents
Young Adult

Figure

•

  Fig. 1 68-year-old female with superior hypophyseal artery aneurysm. A. Digital subtraction angiography shows superior hypophyseal artery aneurysm at C2 segment of left internal carotid artery. B. Stent-assisted coil embolization is performed with Neuroform stent (short arrows). C. Digital subtraction angiography immediately after stent-assisted coil embolization shows residual aneurysm filling (long arrow). D. 3D time of flight with 1-day interval demonstrates mild signal loss with diffuse artifactual luminal narrowing of stented segment and focal aneurysm filling (open arrow). E. 4D MR angiography on same day shows minimal signal loss of stented segment without luminal narrowing, and clearly visualizes residual aneurysm filling (arrowhead).

•

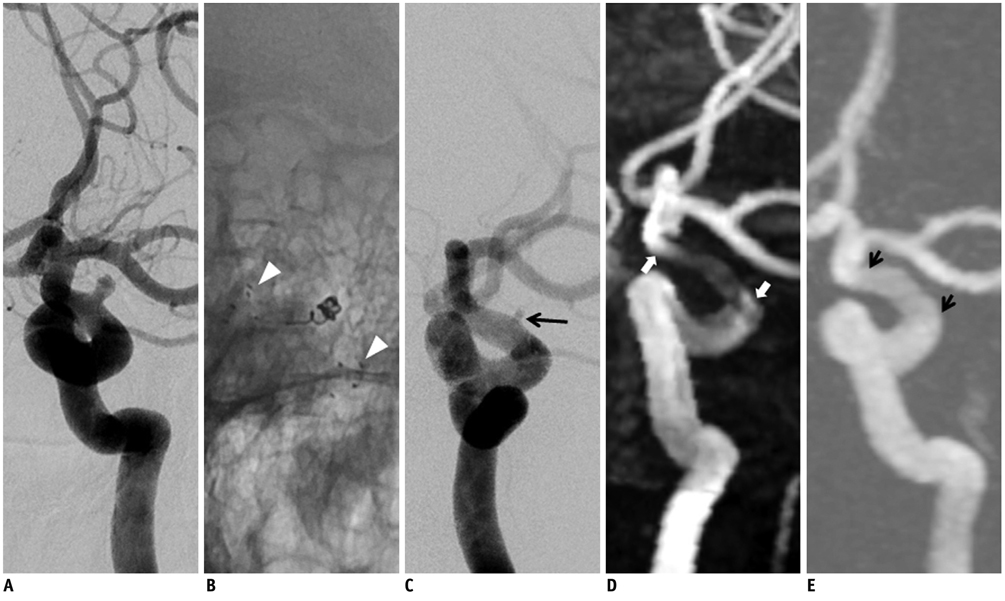

  Fig. 2 53-year-old male with aneurysm at dorsal wall of distal internal carotid artery. A. Digital subtraction angiography shows saccular aneurysm at dorsal wall of C2 segment of left internal carotid artery. B. Neuroform stent (arrowheads) is inserted due to stretching of coil during embolization. C. Digital subtraction angiography immediately after stent-assisted coil embolization demonstrates residual neck (long arrow). D. 3D time of flight demonstrates moderate signal loss with focal artifactual luminal narrowing (open arrows) of stented segment and non-visualization of residual neck. E. 4D MR angiography with 1-day interval shows minimal signal loss of stented segment (short arrows) without luminal narrowing. Residual neck is not detected.

•

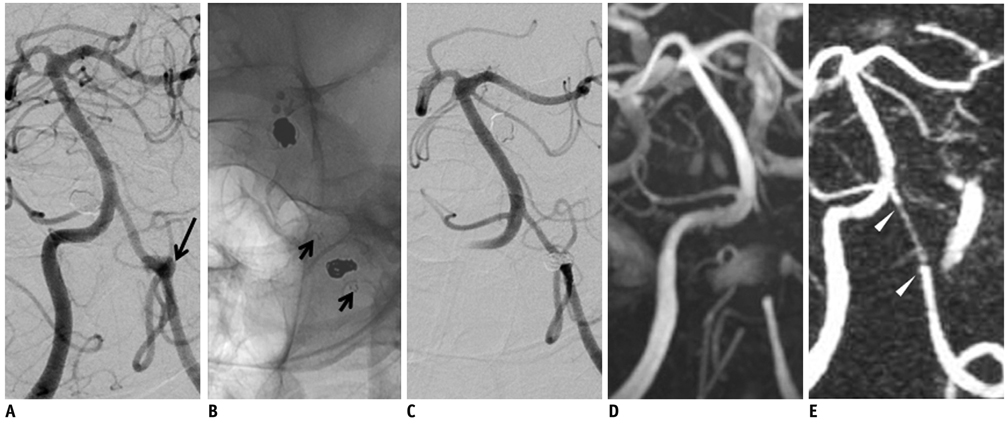

  Fig. 3 59-year-old male with aneurysm at V4 segment of vertebral artery. A. Digital subtraction angiography shows broad-neck aneurysm (long arrow) at V4 segment of left vertebral artery involving posterior inferior cerebral artery origin. B. Stent-assisted coil embolization is successfully performed with Enterprise stent (short arrows). C. Digital subtraction angiography with 6-month interval shows patent stented segment and complete occlusion of treated aneurysm in left vertebral artery. D. 3D time of flight demonstrates complete signal loss causing non-visualization of stented segment of left vertebral artery. E. 4D MR angiography shows mild signal loss of stented segment and diffuse artifactual luminal narrowing (arrowheads). There is no evidence of recanalization of treated aneurysm.

•

  Fig. 4 60-year-old male with large thrombosed aneurysm at vertebral artery. A. Digital subtraction angiography shows only non-thrombosed portion of large aneurysm. B. Stent-assisted coil embolization is performed using Neuroform stent (short arrows). C. Digital subtraction angiography after coil embolization shows minimal residual neck filling (long arrow). D. 3D time of flight after 1-day interval demonstrates diffuse narrowing of stented segment of left vertebral artery. However, it is difficult to evaluate completeness of coil embolization due to T1 shortening artifact of thrombosed aneurysm. E. 4D MR angiography clearly visualizes stented segment of left vertebral artery. Residual neck of aneurysm (arrowhead) is also suspected.
